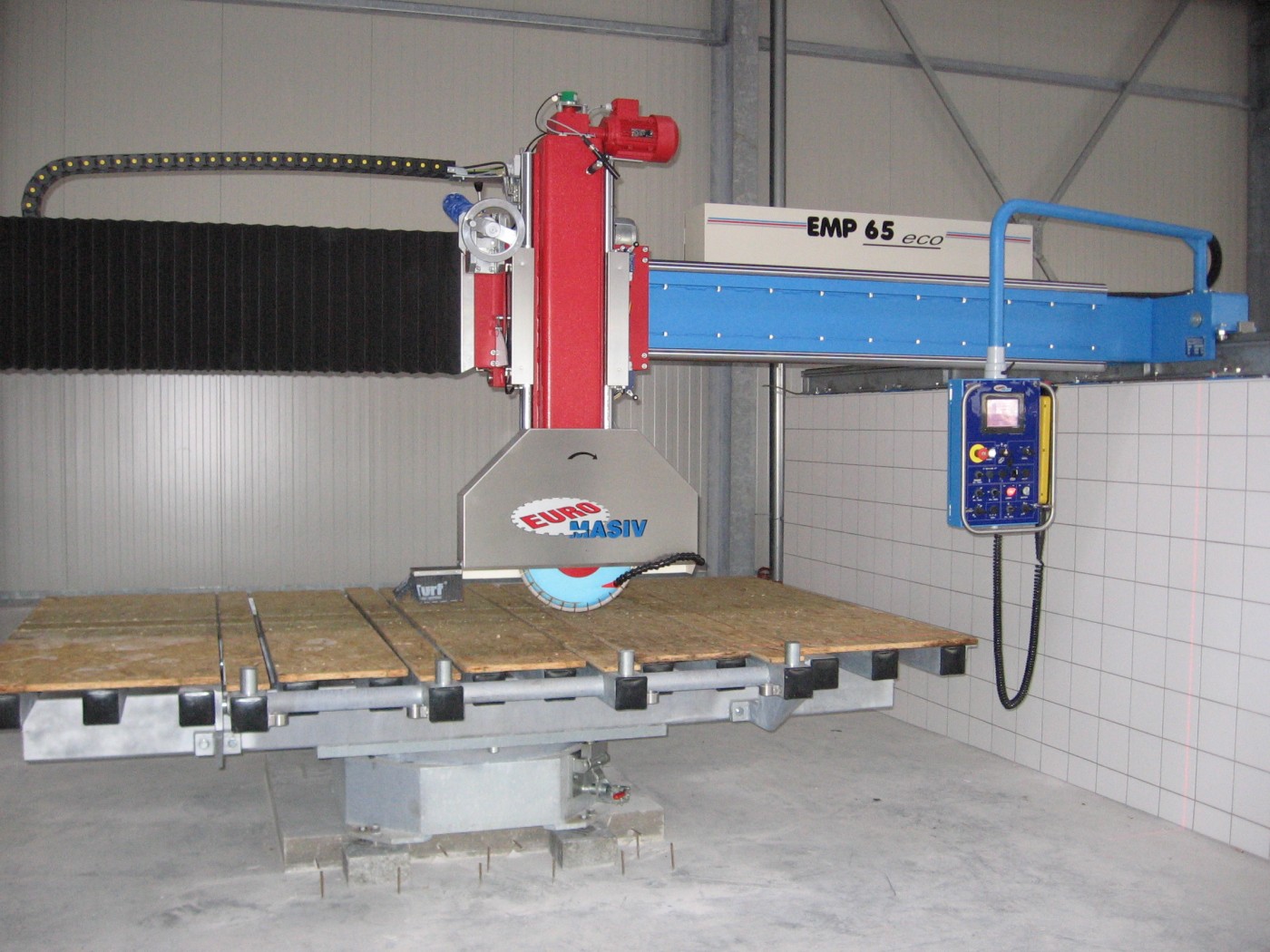

Bridge saw EMP 65 eco profi

Multipurpose bridge saw for stone-cutting plants. Economic version with highly comfortable control and various additional equipment.

EMP 65 Eco Profi

Technical characteristics

  • diameter of saw blade / max. cutting depth from 400/100 to 650/220 mm
  • Cutting length 3.600 mm
  • Lifting 325 nebo 500 mm
  • Main motor performance 7,5 – 11 kW (10 – 15 HP)
  • Linear chrome-plated guidance and sliding sleeves
  • Thick-walled frame of the bridge
  • Tilting of carriage or tilting of saw blade 0-45º
  • Central lubrication by default
  • control system MITSUBISHI
  • Full or gradual cutting, automatically operated

Special options

  • saw blade speed control
  • Revolving table, manually or electrically operated
  • Tipping frame and side rolling cylinders
  • Table size 3.100 x 1.800 až 3.500 x 2.000 mm
  • laser
  • Steel foundations
