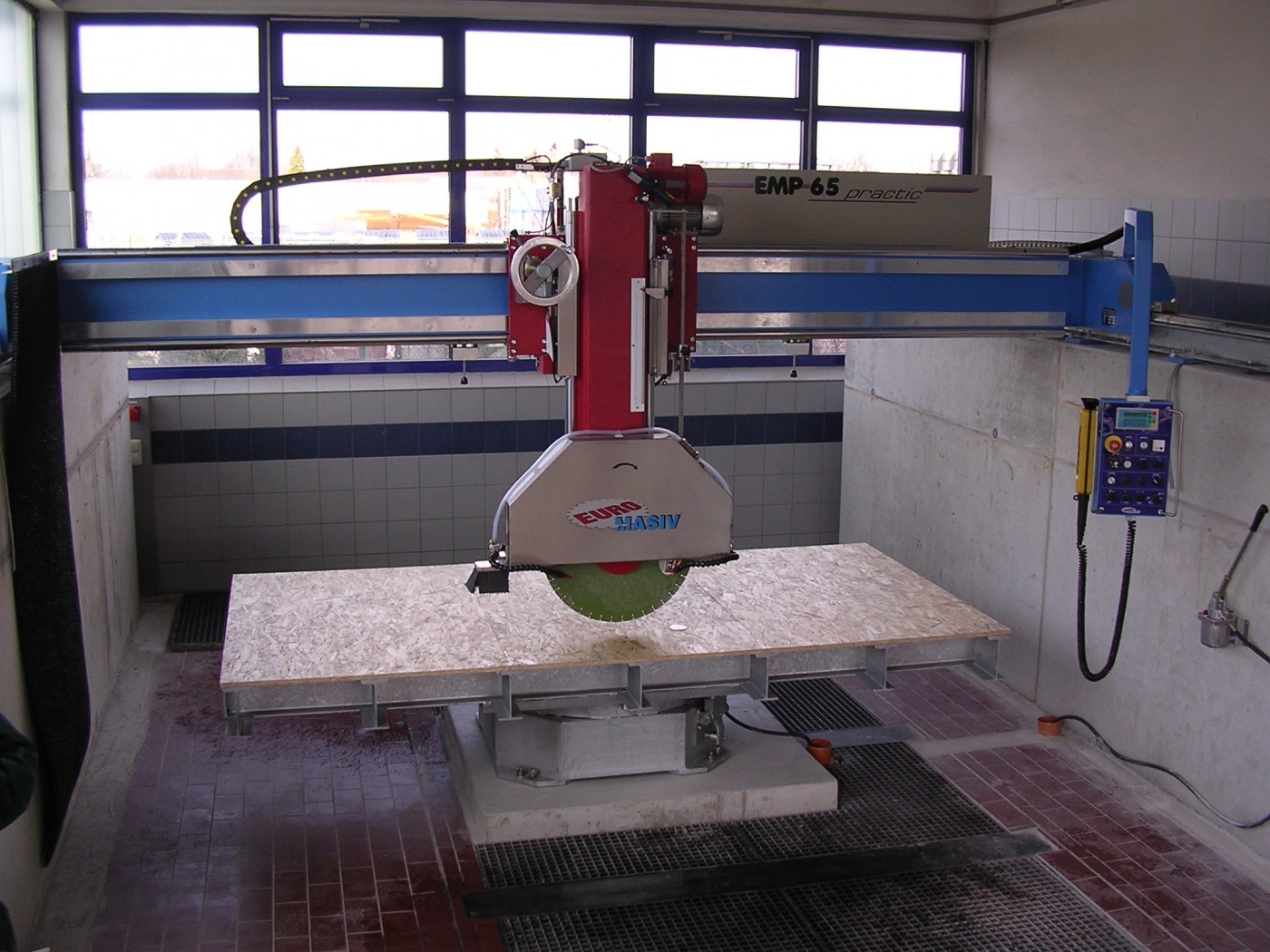

Bridge saw EMP 65 practic

Bridge dimensioning saw for stone-cutting and building plants. Easy control.

EMP 65 Practic

Technical characteristics

  • diameter of saw blade / max. cutting depth from 400/80 to 900/330 mm
  • Cutting length 3.600 mm
  • Lifting 450 nebo 600 mm
  • Main motor performance 11 – 17 kW (15 – 23 HP)
  • Cross-carriage and height-carriage made of grey cast iron
  • Undercarriages are also made of grey cast iron
  • Linear chrome-plated guidance and sliding sleeves
  • Tilting of carriage or tilting of saw disk 0-45º

Special options

  • Manually operated revolving table
  • Table size 3.100 x 1.500 mm
  • laser
  • Steel foundations
